Creating Your Own Custom Role

Table of Contents

1. Before You Start
2. Code
   1. Role Table
   2. Role Strings
   3. Description
   4. Short Description
   5. Team
   6. Shop and Loadout Items
      1. Weapon
      2. Equipment
   7. Credits
   8. Health
   9. Role Activation
   10. Role Selection
   11. Acting Like a Jester
   12. Translations
   13. Custom Spectator HUD
   14. Optional Rules
   15. ConVars
   16. Custom Win Conditions
       1. Win Identifier
       2. Win Condition
       3. Round Summary Title
       4. Round Summary Events
       5. Round Result Message
       6. Full Win Condition Example
   17. Tutorial Page
   18. Role Registration
   19. Final Block
   20. Example File
   21. File Separation
   22. Role Modifications
3. Sprites
   1. Updating the Sprite Folder Name
   2. Finding a Role Icon
   3. Tab File
   4. Score File
   5. Sprite File
   6. Icon File
   7. .vmt Files
4. Uploading Your Addon
   1. addon.json
   2. Workshop Icon
   3. Folder Name
   4. Final Checks
   5. Uploading
5. Wrapping Up

Before You Start

In order to create your own role you will need to make sure you have downloaded tools to edit the following file types:

• .psd - For this guide we will be using Photoshop but GIMP is a great free alternative.
• .lua - This can be done in Notepad in a pinch but at the very least we would recommend Notepad++.
• .vmt and .vtf - VTFEdit Reloaded is the best way to edit these files but if you know what you are doing there are plugins for other apps.

In this guide we will be walking through how we made the Summoner role and you can download all the templates we are using here.

Last thing to do before you are ready to get started is to unzip that file which should give you 4 .psd files and a folder like this:

Code

Open up 'Role Addon Template' > 'lua' > 'customroles' and rename '%NAMERAW%.lua' to whatever you want the name of your role to be. In this case we will rename it to 'summoner.lua'.

Open up that file and you should see something like this:

local ROLE = {}

ROLE.nameraw = ""
ROLE.name = ""
ROLE.nameplural = ""
ROLE.nameext = ""
ROLE.nameshort = ""

ROLE.desc = [[]]

ROLE.shortdesc = ""

ROLE.team =

ROLE.shop = nil
ROLE.loadout = {}

ROLE.startingcredits = nil

ROLE.startinghealth = nil
ROLE.maxhealth = nil

ROLE.isactive = nil
ROLE.selectionpredicate = nil
ROLE.shouldactlikejester = nil

ROLE.translations = {}

ROLE.convars = {}

RegisterRole(ROLE)

if SERVER then
    AddCSLuaFile()
end

Lets break that down piece by piece.

Role Table

First we have this line here:

local ROLE = {}

You don't need to touch this line. The ROLE table will store everything CR for TTT needs to understand your role.

Role Strings

The next chunk here is all about the name of your role:

ROLE.nameraw = ""
ROLE.name = ""
ROLE.nameplural = ""
ROLE.nameext = ""
ROLE.nameshort = ""

nameraw is used to create all the necessary ConVars for your role. It should only contain lowercase characters a-z, without spaces or punctuation.

name, nameplural and nameext are all about how your role is presented to the user. name is the title case name of your role. nameplural is the title case name for the plural of your role. nameext is the title case name for your role with this associated indefinite article. (i.e. a or an)

nameshort is used for sprites and other files relevant to your role. It should be 3 characters long and only contain lowercase characters a-z, without spaces or punctuation. Try to make this unique to your role and not just a generic string of characters to avoid clashes with other roles.

For the Summoner that block of code will now look like this.

ROLE.nameraw = "summoner"
ROLE.name = "Summoner"
ROLE.nameplural = "Summoners"
ROLE.nameext = "a Summoner"
ROLE.nameshort = "sum"

Description

The next line cares about the description of your role that shows up at the start of the round. Lua uses double square brackets for multi-line strings so you don't need quotes or newline characters here, plaintext should do the trick.

There are a few strings here that can be used within curly brackets which are replaced with role names or other information that isn't constant. Below is a table of replacement strings you might find useful.

The description for the Summoner will look like this:

ROLE.desc = [[You are {role}! {comrades}

Summon minions to help defeat your enemies.

Press {menukey} to receive your special equipment!]]

Short Description

Along with the full role description, you need a short description that is no longer than two sentences that will be displayed in the cheat sheet. This is just to convey a general idea of what you role does and does not need to convey much detail. Keep it short and sweet.

The short description for the Summoner will look like this:

ROLE.shortdesc = "Can buy items that summon minions."

Team

Next we have the team. You can set which team your role is a member of by using the the following values

So for the Summoner, which is a traitor we have:

ROLE.team = ROLE_TEAM_TRAITOR

Shop and Loadout Items

The next two lines are all about shop and loadout items:

ROLE.shop = nil
ROLE.loadout = {}

If you want your role to have access to a shop or if you want them to spawn with any items, this is where you can add that.

Traitors automatically have access to body armor, a radar and a disguiser in the shop. Detectives have access to a radar in the shop and spawn with body armor.

To give your role a shop, first change the shop property to read: ROLE.shop = {}. By default a role will not have a shop. If a role is given a shop, the ttt_%NAMERAW%_shop_random_percent, ttt_%NAMERAW%_shop_random_enabled, and (if applicable) ttt_%NAMERAW%_shop_mode or ttt_%NAMERAW%_shop_sync convars will be created automatically.

Inside the curly brackets for the shop or loadout add the class names of any other weapons or equipment you want, separated by commas. To find the class name of a weapon or equipment you can do the following:

Weapon:

1. Start a local server with TTT as the selected gamemode
2. Spawn 1 bot by using the bot command in console
3. Obtain the weapon whose class you want. If it is already available to buy from a certain role's shop, either force yourself to be that role via the ttt_force_* commands or via a ULX plugin.
4. Run the following command in console to get a list of all of your weapon classes: lua_run PrintTable(player.GetHumans()[1]:GetWeapons())

Equipment:

1. Start a local server with TTT as the selected gamemode
2. Spawn 1 bot by using the bot command in console
3. Obtain the equipment item whose name you want. If it is already available to buy from a certain role's shop, either force yourself to be that role via the ttt_force_* commands or via a ULX plugin.
4. Run the following command in console to get a full list of your equipment item names: lua_run GetEquipmentItemById(EQUIP_RADAR); lua_run for id, e in pairs(EquipmentCache) do if player.GetHumans()[1]:HasEquipmentItem(id) then print(id .. " = " .. e.name) end end

(Note: Equipment items can only be added to the loadout table for roles in version 1.2.1 and above!)

For the Summoner, we don't want any loadout items but we do want the shop to have access to a few different items so we can add them like this:

ROLE.shop = {"weapon_ttt_beenade", "weapon_ttt_barnacle", "surprisecombine", "weapon_doncombinesummoner"}
ROLE.loadout = {}

Credits

Now that you have a shop set up for you role, what about the credits to actually buy things? Well, if your role is ROLE_TEAM_TRAITOR or ROLE_TEAM_DETECTIVE then they will automatically have 1 starting credit. If they belong to another team or you want to change your role to have a different amount of starting credits than the default, you can use the ROLE.startingcredits property:

ROLE.startingcredits = nil

Whatever number you assign to this property will automatically be set as the default for the ttt_%NAMERAW%_credits_starting convar. This convar is automatically created for all roles that have credits. For the Summoner, let's have them start with 2 credits so they can use a couple different shop items in the same round:

ROLE.startingcredits = 2

Health

The next couple of properties have to do with the health for your role:

ROLE.startinghealth = nil
ROLE.maxhealth = nil

If these aren't set the role will use 100 for the starting and maximum health by default. Also, if you only set the ROLE.startinghealth property then the maximum health will match by default as well.

For the Summoner we want to keep it at the 100 default health, but for the sake of this example we're going to change the starting and maximum health so they start with 125 but have a maximum of 150, allowing them to heal a little:

ROLE.startinghealth = 125
ROLE.maxhealth = 150

Role Activation

Some roles may have special logic that changes how they behave after some activation event. For example, the Clown is activated when only one team remains and the effect of their activation is they can now do damage. If you want to be able to do something like that we recommend using the entity networked properties system (such as SetNWBool). When the role is activated you could ply:SetNWBool("SummonerActive", true) and then check that they are active in other places to change their behavior using ply:GetNWBool("SummonerActive", false). To make this slightly nicer, we introduced the ply:IsRoleActive() method in v1.2.2 which is also used in delayed shop activation (see Optional Rules).

The next line in our role definition has to do with tying into the ply:IsRoleActive() method, allowing you to define if your role is "active" on your own terms:

ROLE.isactive = nil

This property should be a function with a single parameter that takes a player object and returns a boolean. Continuing our example from the paragraph above, we should define this property like so:

ROLE.isactive = function(ply)
    return ply:GetNWBool("SummonerActive", false)
end

Once that is defined you can use ply:IsRoleActive() anywhere you need to check your role's activation state.

Role Selection

Not all roles that are created should be selectable at all times. A perfect example of this is the Trickster role which is nearly useless on maps that don't have traitor traps and traitor buttons. The next line in our file lets us define a predicate function to decide whether a role should be selectable (both for initial spawn and for a role the Drunk can change into if ttt_drunk_any_role is enabled):

ROLE.selectionpredicate = nil

Our example Summoner doesn't have any selection requirements, but let's say for example's sake that it should behave like the Trickster and only spawn if there are traitor traps and traitor buttons on the map. To do that we define the predicate function which returns true to allow the role to be selected when the traps and buttons exist. It would look something like this:

ROLE.selectionpredicate = function()
            return #ents.FindByClass("ttt_traitor_button") > 0
        end

Acting Like a Jester

The next part of the file will help you create a role that sometimes acts like a jester. The perfect example of this functionality is the Clown role -- when they first spawn, they:

1. Cannot do damage
2. Don't take various forms of damage (fire, explosion, falling, etc.)
3. Appear as a jester to other roles (on the radar, scoreboard, icon over their head, etc.)

Once the role activates (in the case of the Clown, this happens when there is only one team remaining) then they no longer act like a jester, allowing them to do damage and potentially win the round.

To make your role behave similarly, you need to define the following property:

ROLE.shouldactlikejester = nil

This property should be a function with a single parameter that takes a player object and returns a boolean. In the case of our example Summoner, we're going to have them to act like a jester until they are activated. To accomplish that, we define the property like this:

ROLE.shouldactlikejester = function(ply)
    return not ply:IsRoleActive()
end

Once that is defined you can use ply:ShouldActLikeJester() anywhere you need to check whether they should still act like a jester. Custom Roles for TTT will automatically use your defined function when doing damage calculations (damage taken and damage given) as well as role display in thinks like the radar and target ID (icon over the head, name and circle when looking at a player).

Translations

Next there is a line that looks like this:

ROLE.translations = {}

This line allows you to define custom translations to be used elsewhere in your role. The ROLE.translations variable is a table that maps a language name to a list of key-value pairs where the key is the name of the translation and the value is the translated string in the desired language.

For example, if we wanted to add a custom translation for the english language, it would look something like this:

ROLE.translations = {
    ["english"] = {
        ["summoner_testtranslation"] = "This is in English"
    }
}

From here you can add additional entries for each language you want to add support for. The list of currently-supported languages is available on the Facepunch Garry's Mod GitHub. For example, if we wanted to add a Spanish version of our translation then it would look like this:

ROLE.translations = {
    ["english"] = {
        ["summoner_testtranslation"] = "This is in English"
    },
    ["español"] = {
        ["summoner_testtranslation"] = "Esto es en español"
    }
}

(Note: At the very least there should be an english version of every translation you add. The english translation will be used as the default if a translation is not available in the client's chosen language)

Once a translation is defined, it can be used in client-side code via LANG.GetTranslation (or LANG.GetParamTranslation if it requires parameters).

Custom Spectator HUD

Some roles have features which are activated once the player dies, such as the Phantom. In the Phantom's case, they build up some amount of power over time and can use that power to use one of four different abilities against the player the killed them. While the power generation logic will be up to you to design and implement (you may want to look at the Phantom code for reference), the spectator HUD display and action implementation have been made easier through the use of hooks and shared methods.

This section of the guide will explain the pieces of the system which should make these kind of spectator HUDs easier and provide a proof-of-concept example with the summoner role.

To implement a spectator HUD like the Phantom has, you will need to create two hooks, one player method, and a series of translations and convars to control which powers are enabled and their costs. The translations should be added using the role translations system that you can read about above. The TTTSpectatorShowHUD hook (which is what is used to render the spectator HUD itself) must be defined on the client. The convars and the TTTSpectatorHUDKeyPress hook (which is what is used to handle when a key is pressed by someone who has a spectator HUD shown) must be defined on the server. The ROLE.shouldshowspectatorhud method (which determines whether a player should currently be seeing a spectator HUD) should be defined on both client and server.

Due to how inter-connected the pieces of this system are, we're not going to break them down into individual blocks in this guide like other sections do. Instead, we'll go over them in concept and then leave the implemented example below for you to peruse.

For our example's sake we've taken the Phantom implementation and removed half the powers to keep the code size relatively small. Going through the implementation, the ROLE.shouldshowspectatorhud function checks that the player (who is guaranteed to be a summoner, in this case) has the property that shows they should be seeing the spectator HUD. On the client side, we first initialize the translations used for the spectator HUD and then define the HUD itself using the TTTSpectatorShowHUD hook. Within that hook we prepare the information required and call the shared CRHUD:PaintPowersHUD method which handles the rendering for us. The server side is similar, we use the TTTSpectatorHUDKeyPress hook to intercept key presses and define what action each keypress should result in. The API has more information about the specifics of these hooks and methods if you want to learn more. See below for the fully constructed example:

ROLE.shouldshowspectatorhud = function(ply)
    if ply:GetNWBool("Haunting") then
        return true
    end
end

ROLE.translations = {
    ["english"] = {
        ["summoner_haunt_title"] = "WILLPOWER",
        ["summoner_haunt_jump"] = "SPACE: Jump (Cost: {num}%)",
        ["summoner_haunt_drop"] = "RIGHT CLICK: Drop (Cost: {num}%)"
    }
}

local summoner_killer_haunt_power_max = CreateConVar("ttt_summoner_killer_haunt_power_max", "100", FCVAR_REPLICATED)
local summoner_killer_haunt_jump_cost = CreateConVar("ttt_summoner_killer_haunt_jump_cost", "50", FCVAR_REPLICATED)
local summoner_killer_haunt_drop_cost = CreateConVar("ttt_summoner_killer_haunt_drop_cost", "75", FCVAR_REPLICATED)

if CLIENT then
    hook.Add("TTTSpectatorShowHUD", "Summoner_TTTSpectatorShowHUD", function(cli, tgt)
        if not cli:IsSummoner() then return end

        local L = LANG.GetUnsafeLanguageTable()
        local willpower_colors = {
            border = COLOR_WHITE,
            background = Color(17, 115, 135, 222),
            fill = Color(82, 226, 255, 255)
        }
        local powers = {
            [L.summoner_haunt_jump] = summoner_killer_haunt_jump_cost:GetInt(),
            [L.summoner_haunt_drop] = summoner_killer_haunt_drop_cost:GetInt()
        }
        local max_power = summoner_killer_haunt_power_max:GetInt()
        local current_power = cli:GetNWInt("PhantomPossessingPower", 0)

        CRHUD:PaintPowersHUD(powers, max_power, current_power, willpower_colors, L.summoner_haunt_title)
    end)
end

if SERVER then
    hook.Add("TTTSpectatorHUDKeyPress", "Summoner_TTTSpectatorHUDKeyPress", function(ply, tgt, powers)
        if ply:GetNWBool("PhantomHaunting", false) and IsValid(tgt) and tgt:IsActive() then
            powers[IN_ATTACK2] = {
                start_command = "+menu",
                end_command = "-menu",
                time = 0.2,
                cost = summoner_killer_haunt_drop_cost:GetInt()
            }
            powers[IN_JUMP] = {
                start_command = "+jump",
                end_command = "-jump",
                time = 0.2,
                cost = summoner_killer_haunt_jump_cost:GetInt()
            }

            return true, "PhantomPossessingPower"
        end
    end)
end

Optional Rules

There are a few options for roles that aren't covered in the template because they don't apply to every role. Add any of these that you want to apply to your role to the file.

The Summoner doesn't need these options to be set because it is ROLE_TEAM_TRAITOR and has a shop, but just for an example, here's what it would look like if we wanted to remove their credit looting and traitor trap abilities and delay their shop item delivery:

ROLE.canlootcredits = false
ROLE.canusetraitorbuttons = false
ROLE.shoulddelayshop = true

Role Change Logic

Sometimes a role has to handle the specific cases of when a role is initially assigned to a player (e.g. at the start of the round or when the Drunk remembers what role they are) or when a role is stolen (e.g. by the Bodysnatcher or the Swapper). To make those situations handleable there are two different functions that can optionally be added to your role.

The first function is called when a role is initially assigned to a player and can be used to set up some logic like the assignment of the Assassin's first target. The function can be defined like this:

ROLE.onroleassigned = function(ply)
    -- Do something with the 'ply', the player being assigned the role, here
end

The other function that might be useful is called when someone takes the role from someone else. This can be used to transfer some part of the role state (such as an Assassin's current target) to the new player. This function looks something like:

ROLE.moverolestate = function(source, target, keepOnSource)
    -- In this function 'source' is the player whose state is being moved to 'target'
    -- The 'keepOnSource' tells you whether the 'source' player should keep whatever information is being copied to 'target'
    -- If 'keepOnSource' is 'false', that information should be removed from the 'source' player
end

ConVars

By default CR for TTT will handle and create some of the ConVars that are required for your role to function. These ConVars all use the string you gave for nameraw in their definition. The following ConVars are all created by default:

ttt_%NAMERAW%_enabled (Used to enable or disable the role)
ttt_%NAMERAW%_spawn_weight (The weight assigned for spawning the role)
ttt_%NAMERAW%_min_players (The minimum number of player required to spawn the role)
ttt_%NAMERAW%_starting_health (The amount of health the role starts each round with)
ttt_%NAMERAW%_max_health (The maximum health of the role)
ttt_%NAMERAW%_name (Used to rename the role)
ttt_%NAMERAW%_name_plural (Used to rename the plural form of the role)
ttt_%NAMERAW%_name_article (Used to rename the indefinite article of the role)

These next convars are created only if the role has access to a shop:

ttt_%NAMERAW%_credits_starting (The number of credits the role spawns with)
ttt_%NAMERAW%_shop_random_enabled (Whether shop randomization is enabled for the role)
ttt_%NAMERAW%_shop_random_percent (The percent chance that each weapon in the roles shop will not be shown)

Finally, these convars are only created if the role has access to a shop AND is either a traitor, detective or independent role:

ttt_%NAMERAW%_shop_sync (Whether the role should have access to all traitor/detective shop items) [TRAITOR AND DETECTIVE ONLY]
ttt_%NAMERAW%_shop_mode (Whether the role should have access to traitor and/or detective shop items) [INDEPENDENT ONLY]

For more information on the specifics of these ConVars you can read the full list of ConVars here.

If you would like to add your own ConVars that aren't automatically created you can do so here. First create the ConVars as you would normally with CreateConVar. (Note: Please try to keep your ConVars as consistently named as possible. The recommended naming scheme for role specific convars is ttt_%NAMERAW%_....)

Once you have defined your ConVar you can add it to the convars table to get it to show up inside ULX menus. Each entry in the convars table needs two properties. cvar is the name of the ConVar you want to add and type is one of three values depending on if you want your ConVar to show up as a slider, checkbox or textbox.

If your ConVar is a number using a slider you can optionally add a third property decimal which determines how many decimal places of precision you want to give the user. (Note: Max and min values for sliders are determined by the max and min values you specified when you defined the ConVar)

If your ConVar should have a set of limited options, choose ROLE_CONVAR_TYPE_DROPDOWN and add the choices property as a list of the valid options. Alternatively they can can be used to display labels for a numeric range of values. To do this, set the isNumeric property in the role convars table entry. If the value of the convar does not start at 0 (e.g., the convar accepts the range 1-4) then you must configure the offset between the number value and the table index. This is accomplished by setting the numericOffset property (which defaults to 1) in the role convars table entry. Without setting the numericOffset value, the first entry in the choices table will set the convar to 0, the second will be 1, etc.

The Summoner does not have any extra ConVars but for the sake of example we will add some useless ConVars.

if SERVER then
    CreateConVar("ttt_summoner_slider", "0", FCVAR_NONE, "This is a useless slider", 0, 10)
    CreateConVar("ttt_summoner_checkbox", "0")
    CreateConVar("ttt_summoner_textbox", "0")
    CreateConVar("ttt_summoner_dropdown", "default")
    CreateConVar("ttt_summoner_dropdown_numeric", "default", FCVAR_NONE, "This is a useless dropdown", 0, 3)
    CreateConVar("ttt_summoner_dropdown_numeric_offset", "default", FCVAR_NONE, "This is a useless dropdown with an offset", 1, 4)
end
ROLE.convars = {}
table.insert(ROLE.convars, {
    cvar = "ttt_summoner_slider",
    type = ROLE_CONVAR_TYPE_NUM,
    decimal = 2
})
table.insert(ROLE.convars, {
    cvar = "ttt_summoner_checkbox",
    type = ROLE_CONVAR_TYPE_BOOL
})
table.insert(ROLE.convars, {
    cvar = "ttt_summoner_textbox",
    type = ROLE_CONVAR_TYPE_TEXT
})
table.insert(ROLE.convars, {
    cvar = "ttt_summoner_dropdown",
    type = ROLE_CONVAR_TYPE_DROPDOWN,
    choices = {"default", "another option", "something else"}
})
table.insert(ROLE.convars, {
    cvar = "ttt_summoner_dropdown_numeric",
    type = ROLE_CONVAR_TYPE_DROPDOWN,
    choices = {"Value of Zero", "Value of One", "Value of Two", "Value of Three"},
    isNumeric = true
})
table.insert(ROLE.convars, {
    cvar = "ttt_summoner_dropdown_numeric_offset",
    type = ROLE_CONVAR_TYPE_DROPDOWN,
    choices = {"Value of One", "Value of Two", "Value of Three", "Value of Four"},
    isNumeric = true,
    numericOffset = 0
})

Custom Win Conditions

One of the more complicated parts of creating a new role comes with creating a custom win condition. The good news is this is only required if you don't want to use one of the existing "Traitors Win!", "Innocents Win!", etc. messages. A good rule of thumb is if you are creating a role that is ROLE_TEAM_JESTER or ROLE_TEAM_INDEPENDENT then you would probably need to create a custom win condition as well.

To create a custom win condition, you will need to define a global unique win identifier and use three separate hooks.

Win Identifier

The identifier must be unique to make sure you can differentiate between your role's win and any other role's win. The Win ID should be generated on the server and will be automatically synced to the client.

Be sure to use the role ID for your new role when calling the GenerateNewWinID method. After the GenerateNewWinID method is called, the code below then saves the generated value to the global WIN_SUMMONER value to be used on the server later:

if SERVER then
    hook.Add("Initialize", "SummonerInitialize", function()
        WIN_SUMMONER = GenerateNewWinID(ROLE_SUMMONER)
    end)
end

In order for your code to use it on the client, however, you will need to use the TTTSyncWinIDs hook to know when you can pull the ID from the WINS_BY_ROLE global table by doing the following:

if CLIENT then
    hook.Add("TTTSyncWinIDs", "SummonerTTTWinIDsSynced", function()
        WIN_SUMMONER = WINS_BY_ROLE[ROLE_SUMMONER]
    end)
end

Once we have our unique win condition identifier created it's time to write the code that uses it.

Win Condition

The first piece of code that will use our new win condition identifier is the code that determines if our role should win the round. To do that we have to hook the TTTCheckForWin method on the server side. For this hook it is important to only return a value if you want to have a specific result. For example, if you want to block the round from ending you return WIN_NONE and if you want your role to win then you return the win condition identifier we made above (in our example case: WIN_SUMMONER). If you return nothing then the default win condition logic will run as normal. See below for a template example of how to set up this hook:

if SERVER then
    hook.Add("TTTCheckForWin", "SummonerCheckForWin", function()
        local summonerWins = false
        --[[
            Insert logic to determine whether our role should win here
        ]]--

        if summonerWins then
            return WIN_SUMMONER
        end
    end)
end

We'll leave the actual logic to determine whether our role wins blank as an exercise for you to fill out on your own. Once our role can actually win we need to define two more hooks to let everyone know when that it happened.

Round Summary Title

The first hook to show that our role won is the one for the big text on the round summary screen. This hook (which runs on the client side) allows you to return an object which describes the text to show when your win condition happens.

The first property of the object that the hook expects is txt which is the translation string for the text being shown. There are two default translation strings that are available specifically for this purpose. Choose whichever one makes sense for your role:

The second property is params which is another object with the values to use when replacing placeholders in the translation string. When using the translation strings above, the only placeholder is role so the only property inside the params object should be role. The value for this property should be the role string for your role in the correct singular or plural form depending on which translation string you used above. For example, if you used hilite_win_role_singular then role would be ROLE_STRINGS[ROLE_SUMMONER] but if you used hilite_win_role_plural then role would be ROLE_STRINGS_PLURAL[ROLE_SUMMONER].

The final parameter of the returned object is c, representing the color to show in the background behind the winning text. In general you should use the role color for your role. In our case that would look like this: ROLE_COLORS[ROLE_SUMMONER].

Putting all the properties together, the hook would look something like the following:

if CLIENT then
    hook.Add("TTTScoringWinTitle", "SummonerScoringWinTitle", function(wintype, wintitles, title, secondaryWinRole)
        if wintype == WIN_SUMMONER then
            return { txt = "hilite_win_role_singular", params = { role = string.upper(ROLE_STRINGS[ROLE_SUMMONER]) }, c = ROLE_COLORS[ROLE_SUMMONER] }
        end
    end)
end

Round Summary Events

Another part of the round summary screen that we want to tie into the is Events tab. When the round ends we add a row to the Events tab for the major events that occurred during that round. The part that we care about, specifically, is the text for the "round finished" event which is implemented by the two hooks below:

if CLIENT then
    hook.Add("TTTEventFinishText", "SummonerEventFinishText", function(e)
        if e.win == WIN_SUMMONER then
            return LANG.GetParamTranslation("ev_win_summoner", { role = string.lower(ROLE_STRINGS[ROLE_SUMMONER]) })
        end
    end)

    hook.Add("TTTEventFinishIconText", "SummonerEventFinishIconText", function(e, win_string, role_string)
        if e.win == WIN_SUMMONER then
            return win_string, ROLE_STRINGS_PLURAL[ROLE_SUMMONER]
        end
    end)
end

ROLE.translations = {
    ["english"] = {
        ["ev_win_summoner"] = "The {role}'s army of minions has won them the round!"
    }
}

The first hook (TTTEventFinishText) is used to control the text to show in the row on the Events tab itself. We recommend using a translatable string (as we do in the example) but that is not strictly necessary. Don't forget to use the role translations system (detailed above) to set up the translation string to use.

The second hook (TTTEventFinishIconText) is used to control the text that shows when you hover over the icon in the row on the Events tab. The second hook's first return value is the name of a translation string and in most cases doesn't need to be changed at all. In the most common case the only thing you need to do is return the plural string for the winning role (or team) as the second return value.

Round Result Message

The final hook to set up our custom win condition is the one that displays the winning message in the top-right of the screen. It also prints the winning team to the server console, but that's not something the players will see. This hook is on the server side but requires a translation to be set up on the client side (using the role translation system detailed above) for the actual message to display.

The standard name we use for the translation string for this is the same as the win condition identifier global, but in all lowercase. In our example, that would be win_summoner. When we set up the translation we deliberately use a placeholder for the role name so that the role can be renamed dynamically. We then have to pass the role string for our role when we use the translation. The full example of the hook and the translation string setup can be seen below:

if SERVER then
    hook.Add("TTTPrintResultMessage", "SummonerPrintResultMessage", function(type)
        if type == WIN_SUMMONER then
            LANG.Msg("win_summoner", { role = ROLE_STRINGS[ROLE_SUMMONER] })
            ServerLog("Result: " .. ROLE_STRINGS[ROLE_SUMMONER] .. " wins.\n")
            return true
        end
    end)
end

ROLE.translations = {
    ["english"] = {
        ["win_summoner"] = "The {role}'s minions have overwhelmed their enemies!"
    }
}

The LANG.Msg call is the one that sends the message to each client and tells them to translate it. Below that, the ServerLog call writes a simpler message to the server console, just in case. Finally we return true from the hook to tell Custom Roles for TTT not to run the default logic for printing these messages since we've already handled it.

Full Win Condition Example

As mentioned earlier, a good rule of thumb is if you are creating a role that is ROLE_TEAM_JESTER or ROLE_TEAM_INDEPENDENT then you will probably need a custom win condition. In the case of the Summoner none of this is required as it is ROLE_TEAM_TRAITOR and we want the summoner to win with the traitors, but it is left here as an example.

If we piece together all the bits of code from the previous sections it would come out looking something like this:

ROLE.translations = {
    ["english"] = {
        ["ev_win_summoner"] = "The {role}'s army of minions has won them the round!",
        ["win_summoner"] = "The {role}'s minions have overwhelmed their enemies!"
    }
}

if SERVER then
    hook.Add("Initialize", "SummonerInitialize", function()
        WIN_SUMMONER = GenerateNewWinID(ROLE_SUMMONER)
    end)

    hook.Add("TTTCheckForWin", "SummonerCheckForWin", function()
        local summonerWins = false
        --[[
            Insert logic to determine whether our role should win here
        ]]--

        if summonerWins then
            return WIN_SUMMONER
        end
    end)

    hook.Add("TTTPrintResultMessage", "SummonerPrintResultMessage", function(type)
        if type == WIN_SUMMONER then
            LANG.Msg("win_summoner", { role = ROLE_STRINGS[ROLE_SUMMONER] })
            ServerLog("Result: " .. ROLE_STRINGS[ROLE_SUMMONER] .. " wins.\n")
            return true
        end
    end)
end
if CLIENT then
    hook.Add("TTTSyncWinIDs", "SummonerTTTWinIDsSynced", function()
        WIN_SUMMONER = WINS_BY_ROLE[ROLE_SUMMONER]
    end)

    hook.Add("TTTEventFinishText", "SummonerEventFinishText", function(e)
        if e.win == WIN_SUMMONER then
            return LANG.GetParamTranslation("ev_win_summoner", { role = string.lower(ROLE_STRINGS[ROLE_SUMMONER]) })
        end
    end)

    hook.Add("TTTEventFinishIconText", "SummonerEventFinishIconText", function(e, win_string, role_string)
        if e.win == WIN_SUMMONER then
            return win_string, ROLE_STRINGS_PLURAL[ROLE_SUMMONER]
        end
    end)

    hook.Add("TTTScoringWinTitle", "SummonerScoringWinTitle", function(wintype, wintitles, title, secondaryWinRole)
        if wintype == WIN_SUMMONER then
            return { txt = "hilite_win_role_singular", params = { role = string.upper(ROLE_STRINGS[ROLE_SUMMONER]) }, c = ROLE_COLORS[ROLE_SUMMONER] }
        end
    end)
end

Tutorial Page

With every new role that is added, the amount of different possible features and abilities becomes even more difficult for the players to remember. To help in that regard we have created a dynamic tutorial system within the in-game F1 Help and Settings menu. The tutorial system only shows pages for the roles that are currently available and enabled on the server and allows role creators to dynamically define their role tutorial page. The intent of the role tutorial page is to provide a description of the functionality of the role and to dynamically update based on the current role configurations. Dynamically updating the role tutorial page allows server operators to configure the roles to their liking while avoiding the confusion of a static tutorial image not matching those configurations (as in past versions of Custom Roles for TTT).

There are two different client-side hooks that can be used to define the tutorial page for your role:

1. TTTTutorialRolePage - Used to render a completely custom page using the extensive panel and UI control system built into GMod.
2. TTTTutorialRoleText - Used to provide the text to show for a role. This text can be HTML and will be rendered within a <div>.

For our Summoner example, we're going to use the simpler TTTTutorialRoleText hook and return a simple string description of the role.

if CLIENT then
    hook.Add("TTTTutorialRoleText", "SummonerTutorialRoleText", function(role, titleLabel, roleIcon)
        if role == ROLE_SUMMONER then
            return "The " .. ROLE_STRINGS[ROLE_SUMMONER] .. " is a member of the traitor team who can only purchase items that summon minions to fight for them."
        end
    end)
end

(Note: If you would like to make this information translatable, see the Translations section of this document. )

For a more complex example, lets take the same string from before but change the phrase "traitor team" to be the color of the traitor team in TTT. To do that, we're going to use some fairly basic HTML instead of just raw text:

if CLIENT then
    hook.Add("TTTTutorialRoleText", "SummonerTutorialRoleText", function(role, titleLabel, roleIcon)
        if role == ROLE_SUMMONER then
            local roleColor = ROLE_COLORS[ROLE_TRAITOR]
            return "The " .. ROLE_STRINGS[ROLE_SUMMONER] .. " is a member of the traitor team who can only purchase items that summon minions to fight for them."
        end
    end)
end

Role Registration

The next line simply tells CR for TTT to register your role and passes through all the relevant information. You do not need to edit this line. CR for TTT automatically defines an enumeration for your role, ROLE_%NAMERAW% as well as helper functions Get%NAMERAW%, Is%NAMERAW% and IsActive%NAMERAW% if you would like to use them to add extra logic for your role.

Final Block

Finally we have this block of code:

if SERVER then
    AddCSLuaFile()
end

When this code is run on the server it makes sure the client downloads this file so they know everything you have done up until now. Any logic that should only run on the server-side should be in an if SERVER then block like this.

Example File

Once you have done that you are finished with coding. You can close your file and move on to creating your sprites. One last time before moving on to that, here is the full summoner.lua file for reference, as it appears on the workshop:

local ROLE = {}

ROLE.nameraw = "summoner"
ROLE.name = "Summoner"
ROLE.nameplural = "Summoners"
ROLE.nameext = "a Summoner"
ROLE.nameshort = "sum"

ROLE.desc = [[You are {role}! {comrades}

Summon minions to help defeat your enemies.

Press {menukey} to receive your special equipment!]]

ROLE.shortdesc = "Can buy items that summon minions."

ROLE.team = ROLE_TEAM_TRAITOR

ROLE.shop = {"weapon_ttt_beenade", "weapon_ttt_barnacle", "surprisecombine", "weapon_antlionsummoner", "weapon_controllable_manhack", "weapon_doncombinesummoner"}
ROLE.loadout = {}

RegisterRole(ROLE)

if SERVER then
    AddCSLuaFile()
end

if CLIENT then
    hook.Add("TTTTutorialRoleText", "SummonerTutorialRoleText", function(role, titleLabel, roleIcon)
        if role == ROLE_SUMMONER then
            local roleColor = ROLE_COLORS[ROLE_TRAITOR]
            return "The " .. ROLE_STRINGS[ROLE_SUMMONER] .. " is a member of the traitor team who can only purchase items that summon minions to fight for them."
        end
    end)
end

File Separation

When working with larger roles, having everything in the one file can easily become messy. In this situation you can optionally split your code across client, server, and shared files.

To do this first create a folder inside of the 'lua/customroles' folder with the name of your role (e.g. lua/customroles/summoner).
NOTE: All folder names must be lowercase to avoid load order issues.

Inside this folder you can create three separate files:

• '%NAMERAW%.lua' for any code you want to run server-side only. This should be any code you have inside an if SERVER then or similar block.
• 'cl_%NAMERAW%.lua' for any code you want to run client-side only. This should be any code you have inside an if CLIENT then or similar block.
• 'shared.lua' or 'sh_%NAMERAW%.lua' for any code you want to run both server-side and client-side.

For example in the case of the summoner, if I wanted to use this method my file structure should look like this:

└─ lua
   └─ customroles
      └─ summoner
         ├─ cl_summoner.lua
         ├─ shared.lua
         └─ summoner.lua


Role Modifications

If instead of creating your own role from scratch you would like to modify a pre-existing role, you can do this by placing your code inside of 'lua/rolemodifications' instead of 'lua/customroles'. You SHOULD NOT create the ROLE table or call RegisterRole(ROLE) when creating a role modification as the role you are modifying already exists.

You can either place your code inside a single file, or you can split it between three separate client, server, and shared files as is described in the File Separation section.

Modifying pre-existing roles can end up being more confusing than creating one from scratch if you don't know what you are doing, and unfortunately as the scope of modifying a role is almost endless an in depth walkthrough would be impossible. It is strongly recommended that you familiarise yourself with Lua, Garry's Mod and Custom Roles for TTT before getting started with a role modification. If you would like to see an example of a role modification you can look at the code behind the enhanced detectives pack here.

Sprites

There are four different sprites used within CR for TTT and you will need to make a separate image file for each.

Updating the Sprite Folder Name

Before we start creating sprites, we'll need to update the name of the folder that will hold these sprites. You can find the folder in the exacted 'Role Addon Template' > 'materials' > 'vgui' > 'ttt' > 'roles' folder and it will be named '%NAMESHORT%'. Rename '%NAMESHORT%' to the short name you chose for your role above. In our example, that means we will be renaming the folder to 'sum' for the Summoner. All icons from this section of the guide will be saved in this now-renamed folder.

Finding a Role Icon

Before you start messing with each individual sprite you need to find a good role icon. Your role icon should be solid white and you should avoid too much detail. One of the best places we know to find icons like this is https://game-icons.net/.

For the Summoner we are going to use their "minions" icon with some slight changes. Make sure your icon is white with a transparent background. Here is the final version of the icon we are using for the summoner:

Tab File

The tab file is the simplest icon of the bunch. This icon shows up next to players that you know the role of when you are holding tab. There is no template for the tab icon as all you need to do is resize your icon down to 16x16. This icon should be saved as 'tab_%NAMESHORT%.png' where %NAMESHORT% is replaced with whatever you defined nameshort as earlier. All of the icons in this guide should be saved in 'Role Addon Template' > 'materials' > 'vgui' > 'ttt' > 'roles' > '%NAMESHORT%'.

Here is what we ended with for 'tab_sum.png':

Score File

The score file is what shows up in the round summary at the end of each round. Open up 'Score Template.psd' and you should see a white dashed outline. This is the guide for the size of your icon. Click on the 'Icon' layer and paste in your role icon. You should automatically see a shadow appear behind your icon. Resize this icon until the white is all inside the dashed outline. (Note: It doesn't matter if some shadow spills out of the outline as long as all the white is inside the guide.) Once you are happy with the positioning of the icon you can click the eye symbol next to the 'Icon Guide' layer to hide the dashed outline guide. Save this image as 'score_%NAMESHORT%.png' where %NAMESHORT% is replaced as you did before. Once again this should be saved in 'Role Addon Template' > 'materials' > 'vgui' > 'ttt' > 'roles' > '%NAMESHORT%'.

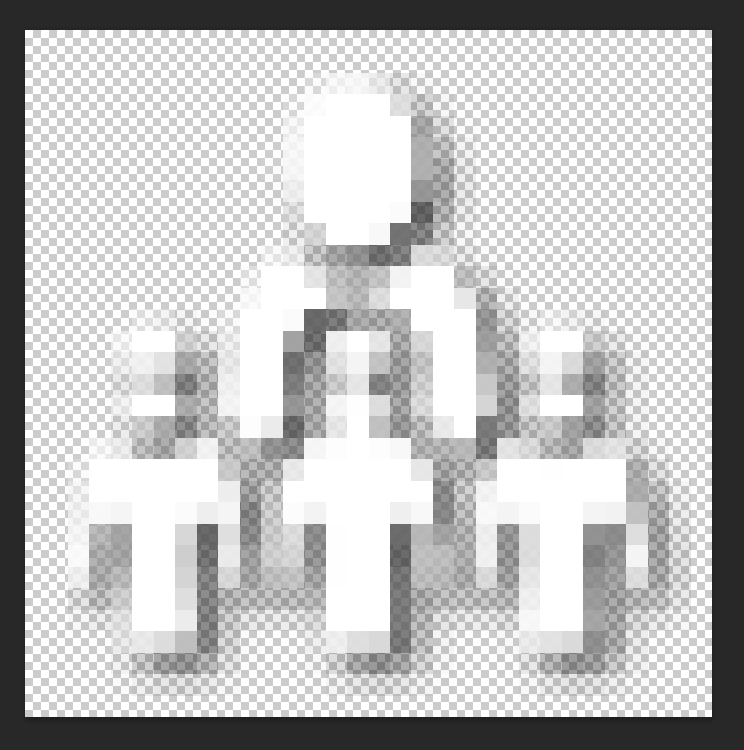

Here is what we have for 'score_sum.png':

Sprite File

The sprite file is what shows up above players heads when you know their role. Open up 'Sprite Template.psd' and once again you should see a white dashed outline. Repeat the same process as you did for the score icon. Click on the 'Icon' layer, paste in your role icon, resize to fit the outline and hide the outline guide layer. Save this image as 'sprite_%NAMESHORT%.png'.

Finally we can turn our .png into the .vtf file we need. Open VTFEdit Reloaded, click 'File' > 'Import' and select your .png file. You should see your icon inside of VTFEdit Reloaded except the shadows should have turned solid black and any transparency is now white. While this may look incredibly strange, this is actually exactly what we want! Save this file as 'sprite_%NAMESHORT%.vtf' in 'Role Addon Template' > 'materials' > 'vgui' > 'ttt' > 'roles' > '%NAMESHORT%'.

Here is the final version of 'sprite_sum.vtf':

Icon File

The icon file is shown when a body is searched to reveal that players role. Open up 'Icon Template.psd' and yet again you should see a guide outline. Repeat the same process you did for both the score and sprite files. The icon file also needs to have a .vtf format so save your file as a .png and import it into VTFEdit Reloaded. Save this file as 'icon_%NAMESHORT%.vtf' in 'Role Addon Template' > 'materials' > 'vgui' > 'ttt' > 'roles' > '%NAMESHORT%'.

Here is the final version of 'icon_sum.vtf':

.vmt Files

The final step you need to take to finish your role sprites is to update the three .vmt files that were already present in 'Role Addon Template' > 'materials' > 'vgui' > 'ttt' > 'roles' > '%NAMESHORT%' when you started. Rename each of the files to replace %NAMESHORT% with what you defined nameshort as in your earlier coding. Open up each file and you should see one line that looks like this:

"$basetexture" "vgui/ttt/roles/%NAMESHORT%/sprite_%NAMESHORT%"

or this:

"$basetexture" "vgui/ttt/roles/%NAMESHORT%/icon_%NAMESHORT%"

Replace %NAMESHORT% with whatever you set nameshort to earlier and save each of those three files.

For example, here is what 'sprite_sum_noz.vmt' looks like:

"UnlitGeneric"
{
    "$basetexture" "vgui/ttt/roles/%NAMESHORT%/sprite_sum"
    "$nocull" 1
    "$ignorez" 1
    "$nodecal" 1
    "$nolod" 1
    "$vertexcolor" 1
    "$vertexalpha" 1
    "$translucent" 1
}


Uploading Your Addon

Your role is almost ready to go! The last thing you need to do is upload your addon to the steam workshop. Before you can do that there are 2 more files you need to make 'addon.json' and your workshop icon.

addon.json

'addon.json' is found inside the 'Role Addon Template' folder. Open it up and set %NAME% to whatever the name of your role is.

For example 'addon.json' for the Summoner role looks like this:

{
  "title": "Summoner (CR for TTT)",
  "type": "ServerContent",
  "ignore": []
}


Workshop Icon

Now is the time to open the last template. This step is completely optional, you can use whatever workshop icon you want! However, if you want to keep it consistent with other CR for TTT roles open up 'Workshop Icon Template.psd'.

Right about now you should be getting a feeling of déjà vu because out friend the white dashed outline is back. Copy your role icon onto the 'Icon' layer and this time instead of a shadow you should see a thick coloured outline. Resize your icon so the white all fits within the guide, it doesn't matter if the coloured outline spills outside the guide. Hide the 'Icon Guide' layer and you are almost good to go.

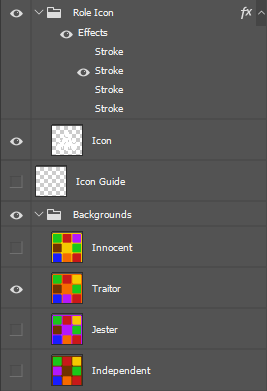

Each team in CR for TTT has it's own colour it is identified by and this template works best if you switch out the background to match that colour. In the layers window you should see four different background colours. Hide all the ones that don't match your roles team. You should also see four different stroke outline effects on the 'Role Icon' layer. Hide all the ones that don't match the colour of the background.

In the case of the Summoner or another traitor role it should look like this:

Once you have done that you are ready to hit save. This time you want to put your icon in the same folder as 'Role Addon Template', not inside it! Steam workshop needs the icon file to be a .jpg so make sure you save it as the right format.

Here is my finalised 'SummonerRole.jpg':

Folder Name

While we are at it now is a good time to rename 'Role Addon Template' because it's not a template anymore, it's yours! Name it the same thing as whatever you named your workshop icon.

Before you get to uploading now is a great time to test your addon. In Steam right click on Garry's Mod and click 'Manage' > 'Browse local files'. A folder should open up which contains your GMod files. Open 'garrysmod' > 'addons' and paste the folder you just renamed in here. When you next boot up GMod your addon should load and you can test it out before uploading to the workshop.

Final Checks

Before you upload your addon, now is a great time to check that your file structure is all correct! For reference here is the file structure of my completed Summoner addon:

├─ SummonerRole.jpg
└─ SummonerRole
   ├─ addon.json
   ├─ lua
   │  └─ customroles
   │     └─ summoner.lua
   └─ materials
      └─ vgui
         └─ ttt
            ├─ score_sum.png
            ├─ tab_sum.png
            ├─ icon_sum.vtf
            ├─ icon_sum.vmt
            ├─ sprite_sum.vtf
            ├─ sprite_sum.vmt
            └─ sprite_sum_noz.vmt


Uploading

Now you are ready to upload your addon. In Steam right click on Garry's Mod and click 'Manage' > 'Browse local files'. A folder should open up which contains your GMod files. Open 'bin' and you should see a file called 'gmad.exe'. Drag and drop your addon folder onto 'gmad.exe'. You should see a new file appear next to your addon folder. It should have the same name as your folder but with the file extension '.gma'. In my case we now have a new file called 'SummonerRole.gma'.

Go back to the same folder where you found 'gmad.exe'. Click on the address bar up the top and type 'cmd'. This should open up the command prompt where you need to type this command to upload your addon.

gmpublish.exe create -addon %PATHTOGMA% -icon %PATHTOJPG%

Replace %PATHTOGMA% and %PATHTOJPG% with the file paths to your .gma addon file and .jpg workshop icon respectively.

For my Summoner addon it looks like this:

gmpublish.exe create -addon "C:\Development\GMod\SummonerRole.gma" -icon "C:\Development\GMod\SummonerRole.jpg"

Hit enter and you should see your addon upload to Steam! Once it is done you can view your addon by opening steam, hovering over your name up the top and clicking 'Content'. Click the 'Workshop Items' tab and your addon should be there! Here you can give your addon a description and then change its visibility to public. (Note: If you ever need to update a pre-existing addon you can read how to do that here.)

Once you have made your addon public, we would love to hear about it! Jump into our discord server and show us what you have made!

Wrapping Up

If you have any problems or questions please jump into the Custom Roles for TTT Discord Server! We love to see what everyone has making and there are almost always people online willing to help out if you need a hand.
